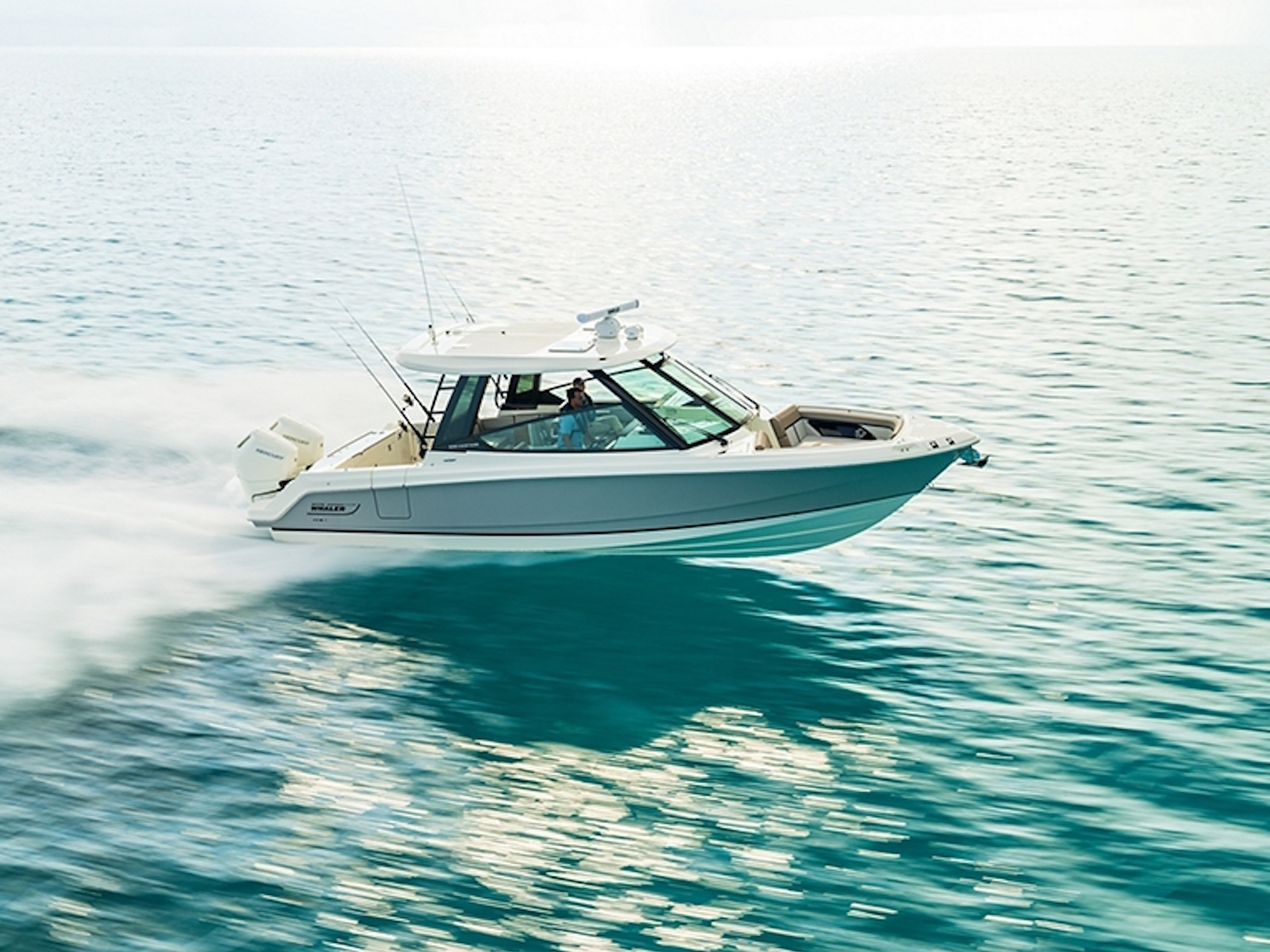

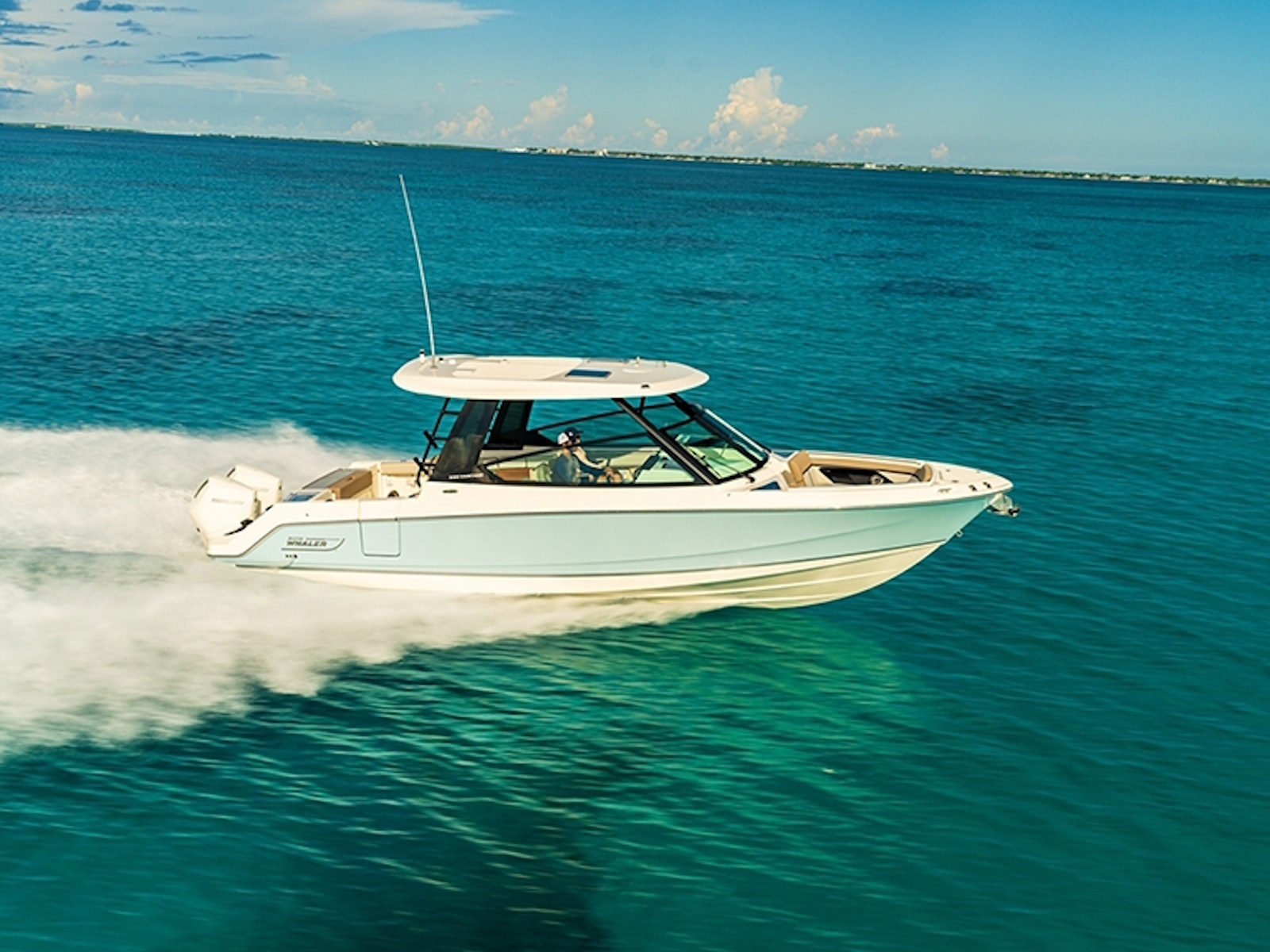

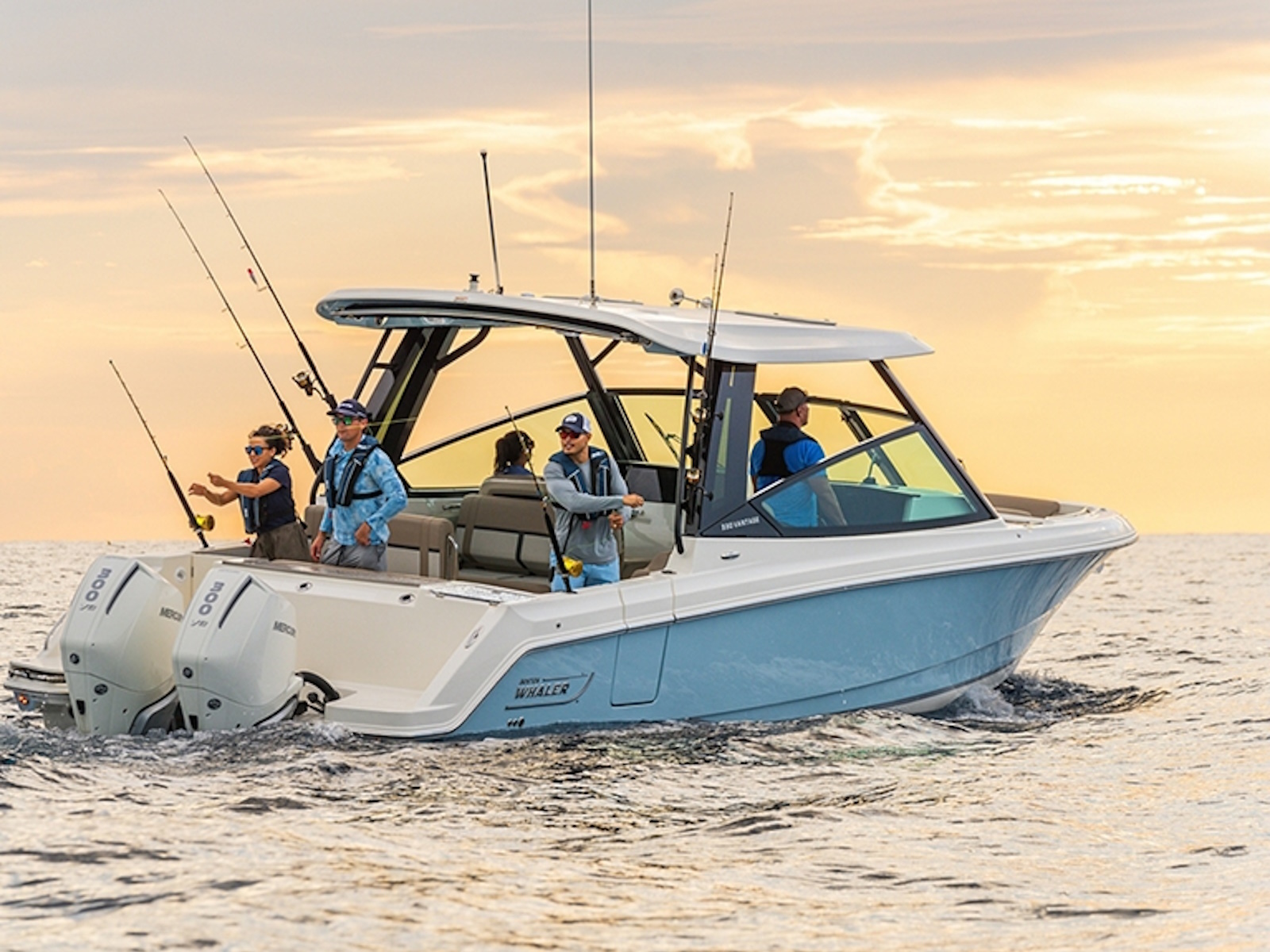

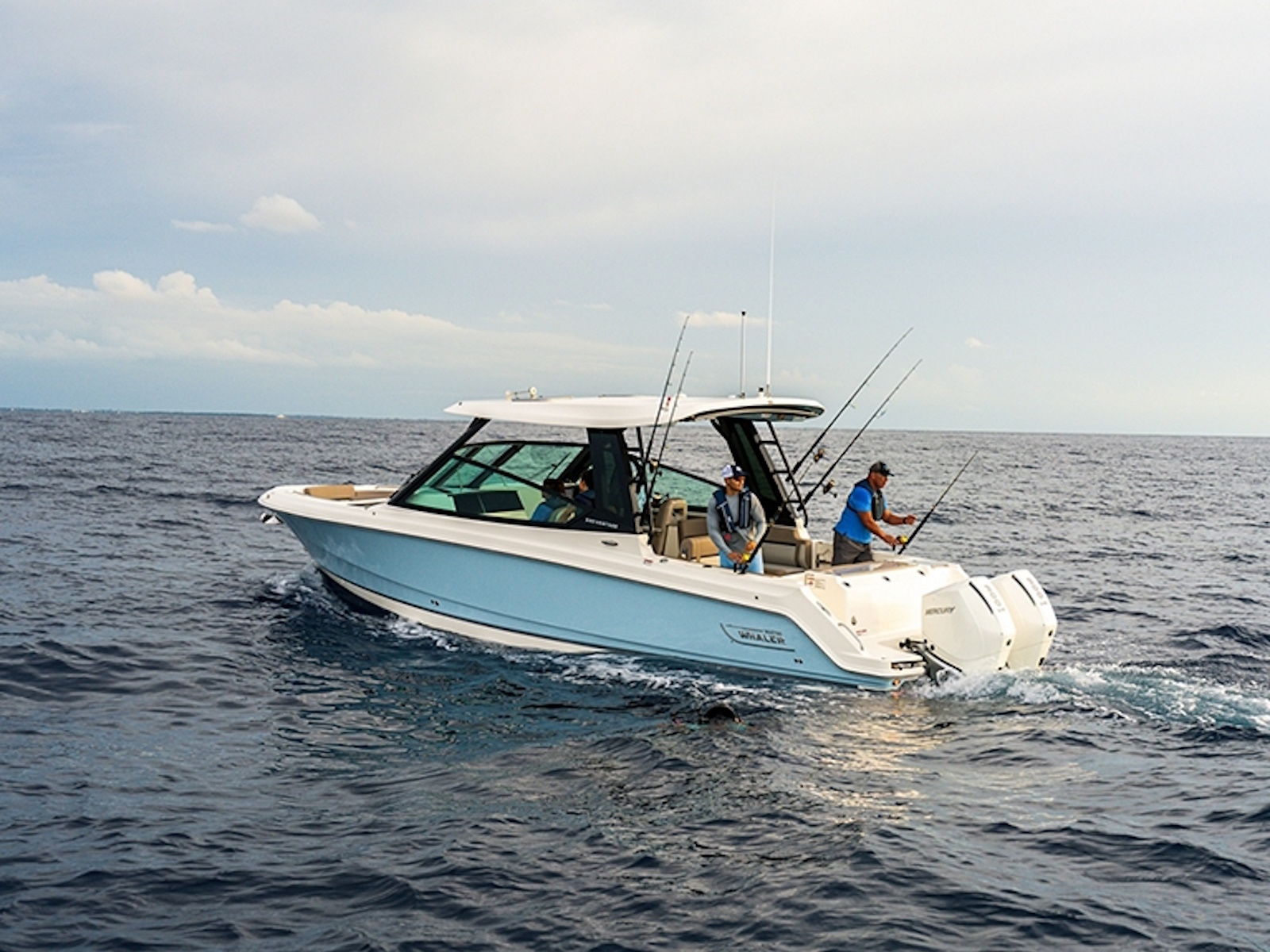

2025 Boston Whaler 330 Vantage

Our largest dual console brings family and friends together on the water like no boat you’ve ever encountered. An expansive deck is surrounded by luxurious seating, including our award-winning convertible port lounge and an inward-facing couch at starboard. The dual console seats two on the port side and gives the captain the visibility and technology to lead any adventure with ease. A sleek and protective hardtop and half or full windshield options shield you from the weather, and a large head means comfort for all. With Whaler’s legendary unsinkable hull and premium, rock-solid performance, the 330 Vantage will transform the way you and your crew experience the water.

Brow Area:

• USB receptacles (2)
• Bow bolster
• Bow cushions with backrests
• Bow walkthrough block off panel
• Drink holders (4) - stainless steel
• Fiberglass lids (3) with latches
• Folding armrests port and starboard
• Forward side rails - welded stainless steel
• Molded in insulated cooler on centerline
• Recessed storage / cup holder compartment
• Insulated in floor bow fishbox with pump-out

Deck/Cockpit:

• 8” stainless steel cleats (2) Bow
• 8" stainless steel pop-up cleats; (2) stern, (2) spring line
• 28” interior freeboard
• Anchor storage
• Anchor windlass with 200’ of rode, chain and anchor
• Bow and stern eyes
• Cockpit coaming bolsters
• Cockpit courtesy lights –RGBW
• Drink holders - stainless steel(6)
• Extended integral swim platform with ladder and grab rail
• Grab rails - stainless steel and Heavy-duty rub rail
• 27 gallon livewell with light
• Molded fiberglass starboard dive/boarding door with removable stainless steel dive ladder and deployable grab rail
• Rod holders - stainless steel, gunnel mounted; (2) stbd cockpit, (2) port cockpit, (3) transom mounted
• Self-bailing cockpit sole
• Stainless steel toe rail on port side and stainless steel thru hull anchor roller davit
• Transom door with stainless steel latch
• Insulated in floor fishboxes with pump-out aft (2)

Fiberglass Hardtop:

• Grab rails- port and Starboard - stainless steel (2)
• Molded in non-skid
• Outrigger flats
• Navigation lights
• Rod holders (4) in aft pillars
• Tow bit
• Welded aluminum integrated frame with tempered glass low windshield, side glass, and B pillar tinted glass panel. Hinged center windshield door latches in open and closed positions features lift assist to prevent slamming

Mechanical:

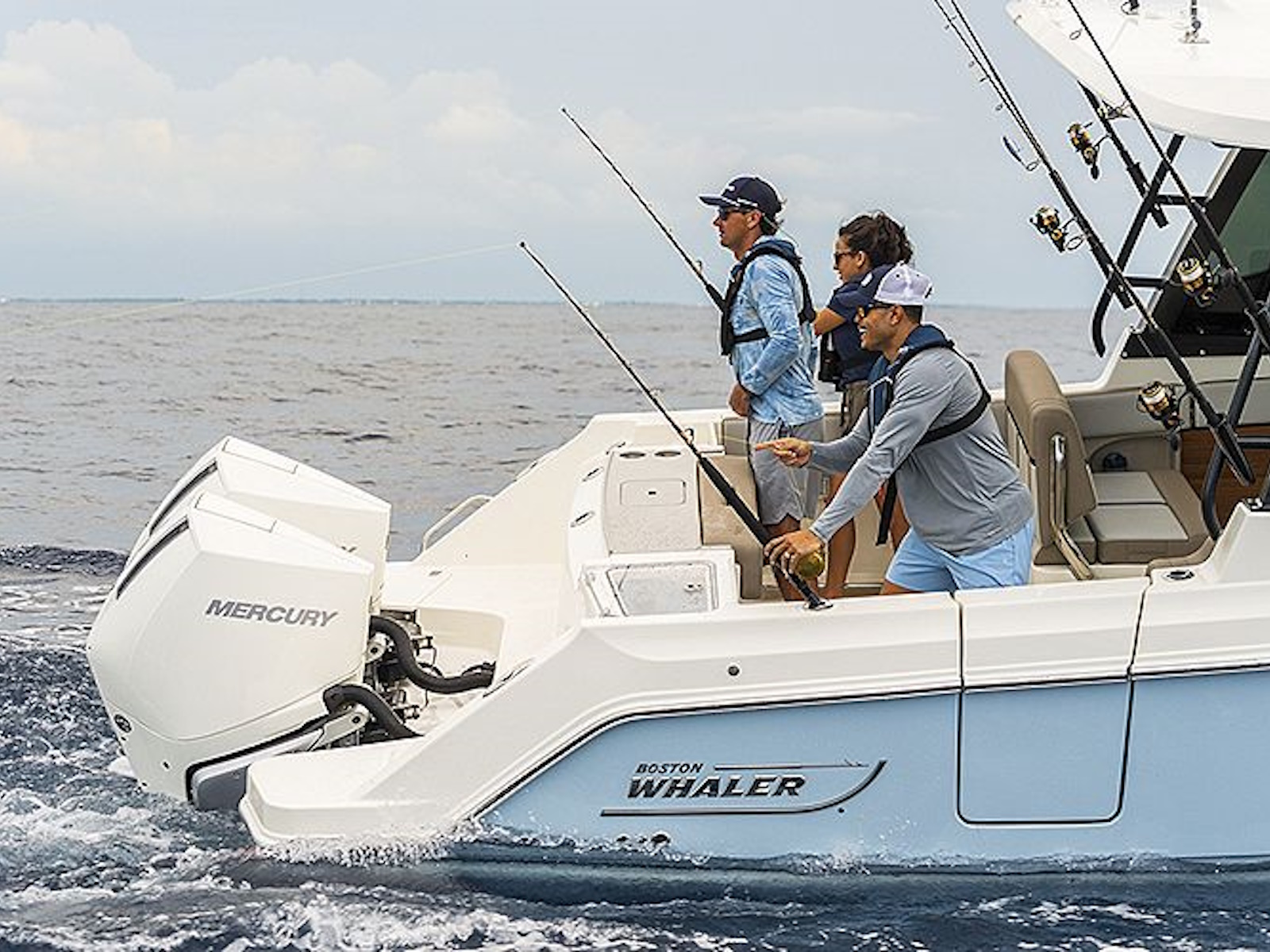

• 300 V8 DTS Dual Black Mercury Verado with hydraulic power steering
• Integrated Mercury SmartCraft Connect
• Tilt steering
• Stainless steel propellers
• 285 gallon fuel tank
• Bilge pump – automatic with visual indicator (1200 GPH bilge)
• Bilge pumps – high water bilge pumps, automatic with visual and audible notification (1200 GPH aft, 1200 GPH cabin)
• Battery trays Engine (2), House (2) with remote switches and automatic charging/paralleling relays
• Digital Vessel Control and Monitoring System - Monitoring: Batteries, Tanks, Bilge pumps - Controlling: Wiper/wash, Running/Anchor lights, Courtesy lights (RGBW), Underwater lighting, fishbox pumps - Auto text backlighting - Dash panel switches
• Electric trumpet horn
• Engine and fuel/water separators
• Freshwater system (30 gallons) with bow and stern sprayers and faucet at transom box sink
• LED navigation lights
• Shore power with battery charger and galvanic isolator – ELCI system – single 30A Transducer mount area
• Anchor windlass with 200’ of rode, chain and polished stainless-steel anchor
• Active engine trim Electric trim tabs with indicator

Seating:

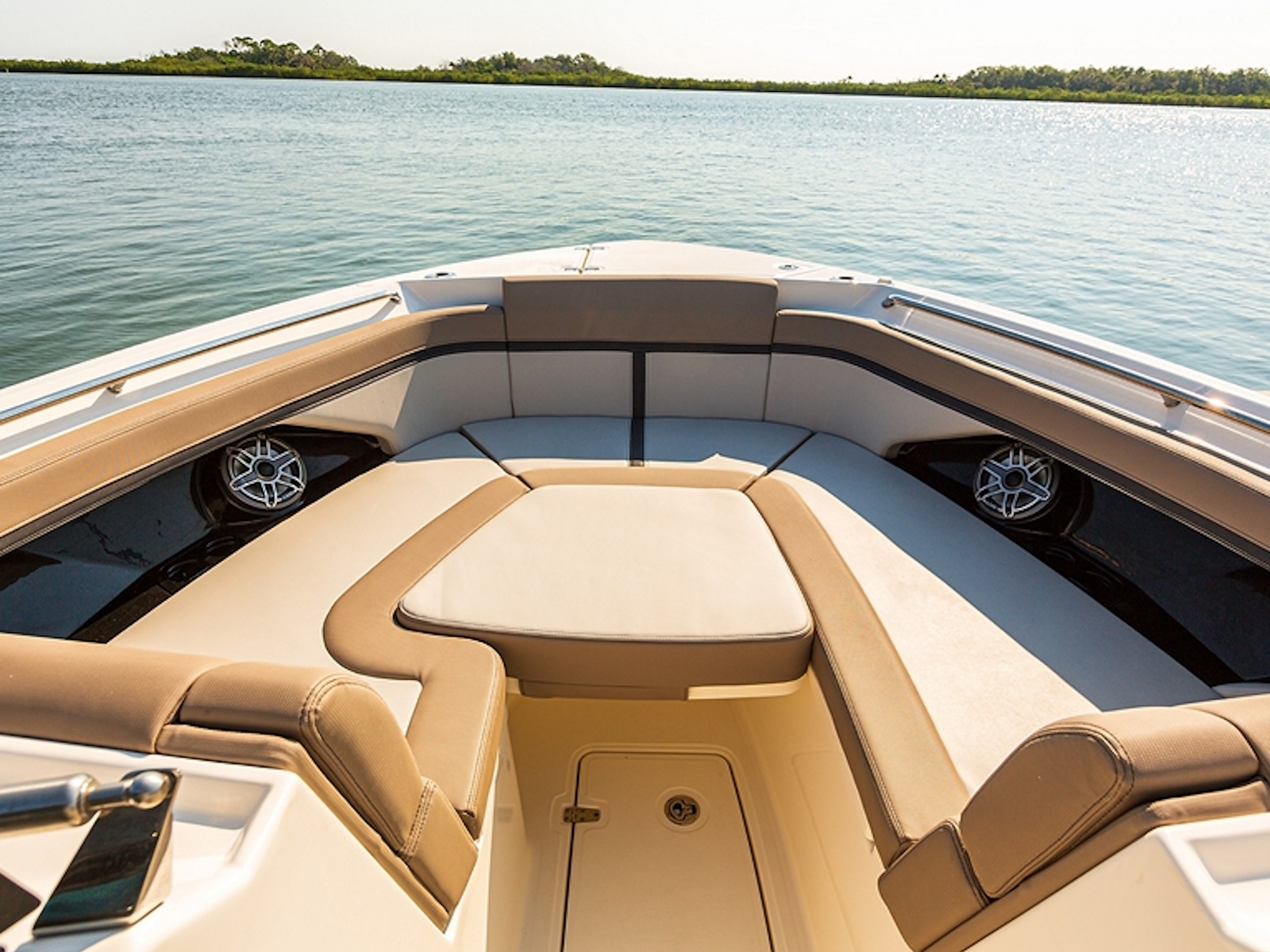

• Bow seating area with lounge backrests and armrests port and starboard

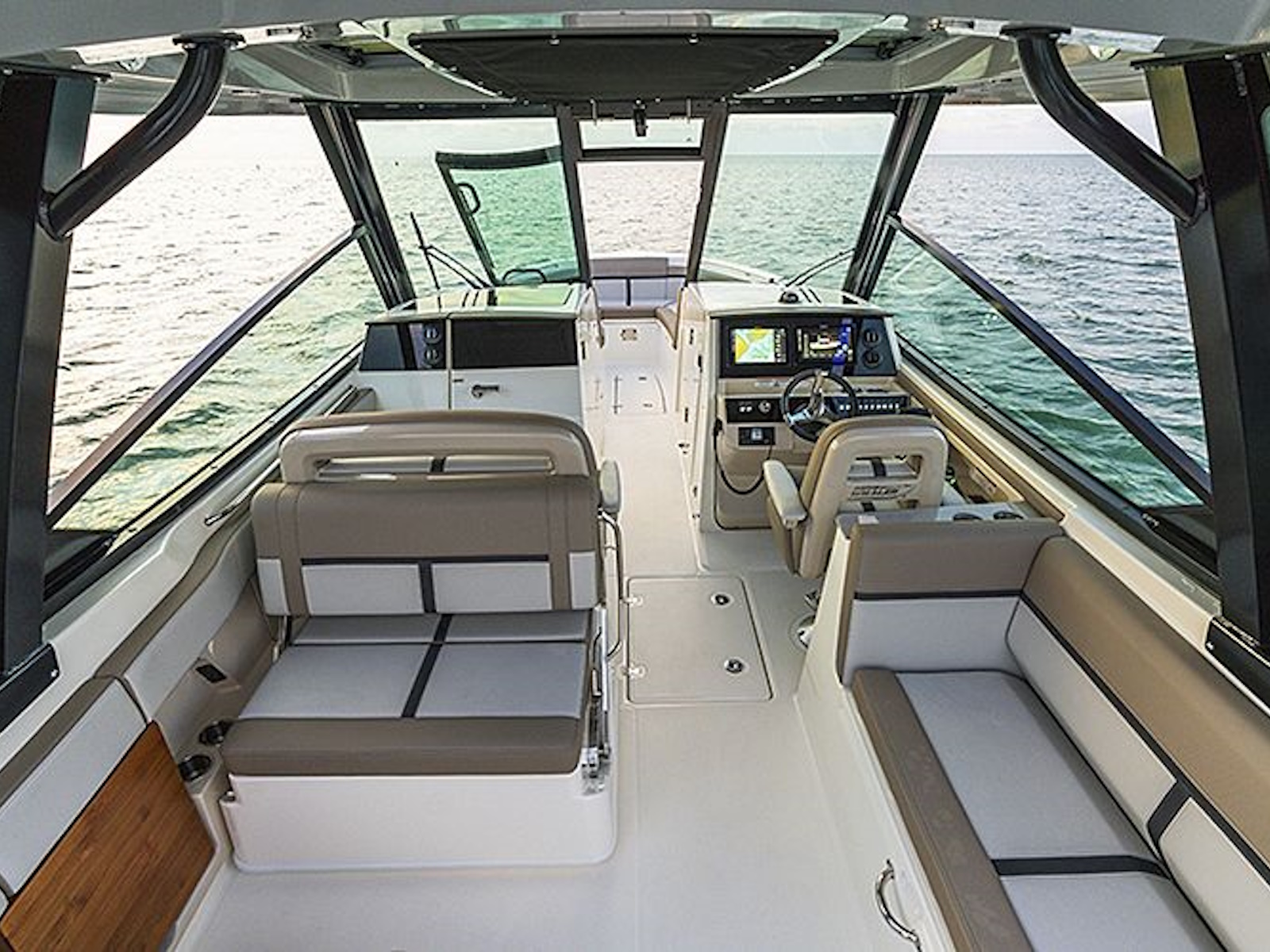

• Deluxe custom Boston Whaler helm seat with electric high/low pedestal and slide
• Deluxe double port helm seating with electric high/low pedestal and foot rest

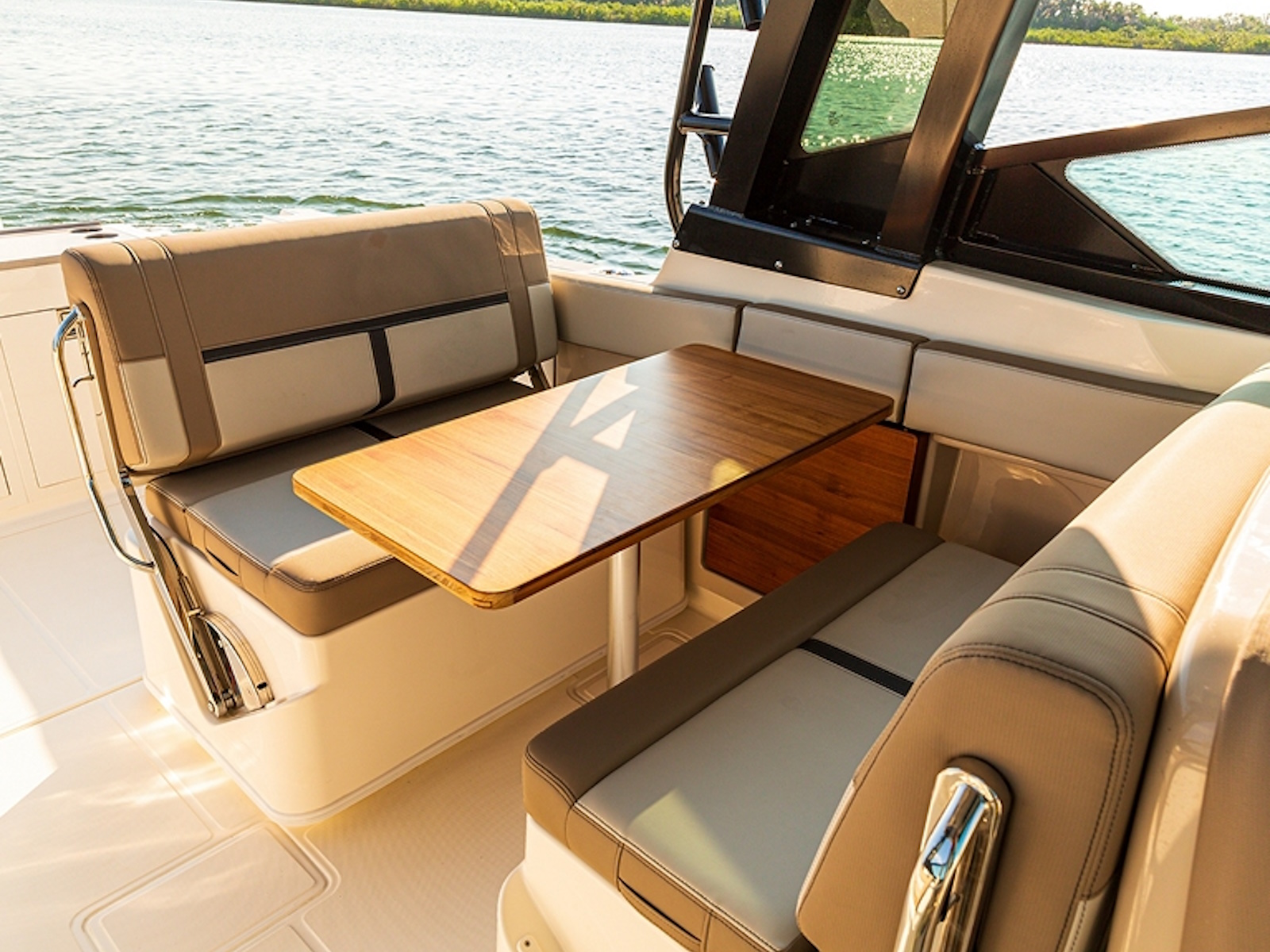

• Port dinette with forward and aft facing seat and fold out table. Converts to form 2 person forward or aft facing lounge by converting the forward or aft backrest into a filler.
• Starboard lounge, functions as aft facing lounge for one or side facing seat for 2-3 beside dinette. Foldout stern seat with elevated backrest

Standard Equipment:

• All Rails Welded 316-L Stainless Steel
• All Hardware 316-L Stainless Steel

Storage:

• Bow anchor locker with overboard drain
• Bow storage lockers, port and starboard with overboard drains
• Helm deck center storage within mechanical space, bulkhead dividers separate mechanicals from dedicated storage
• Head storage compartment
• Storage under port dinette seats
• Insulated cooler under starboard lounge seat
• Insulated in floor cockpit fishboxes with pump-out aft (2)
• Insulated in floor bow fishbox with pump-out

Vessel View Mobile:

• Troubleshooting assistance with dealer notification
• Display key engine data on your smartphone (Android® or Apple® iPhone®)
• Bluetooth® connection via Vessel View Mobile app (compatible while connected to stereo)

Port console Exterior:

• Dash visor
• Gasketed, lockable, fiberglass entry door with gaskets and draw down latch
• Teak footrest across deck and door

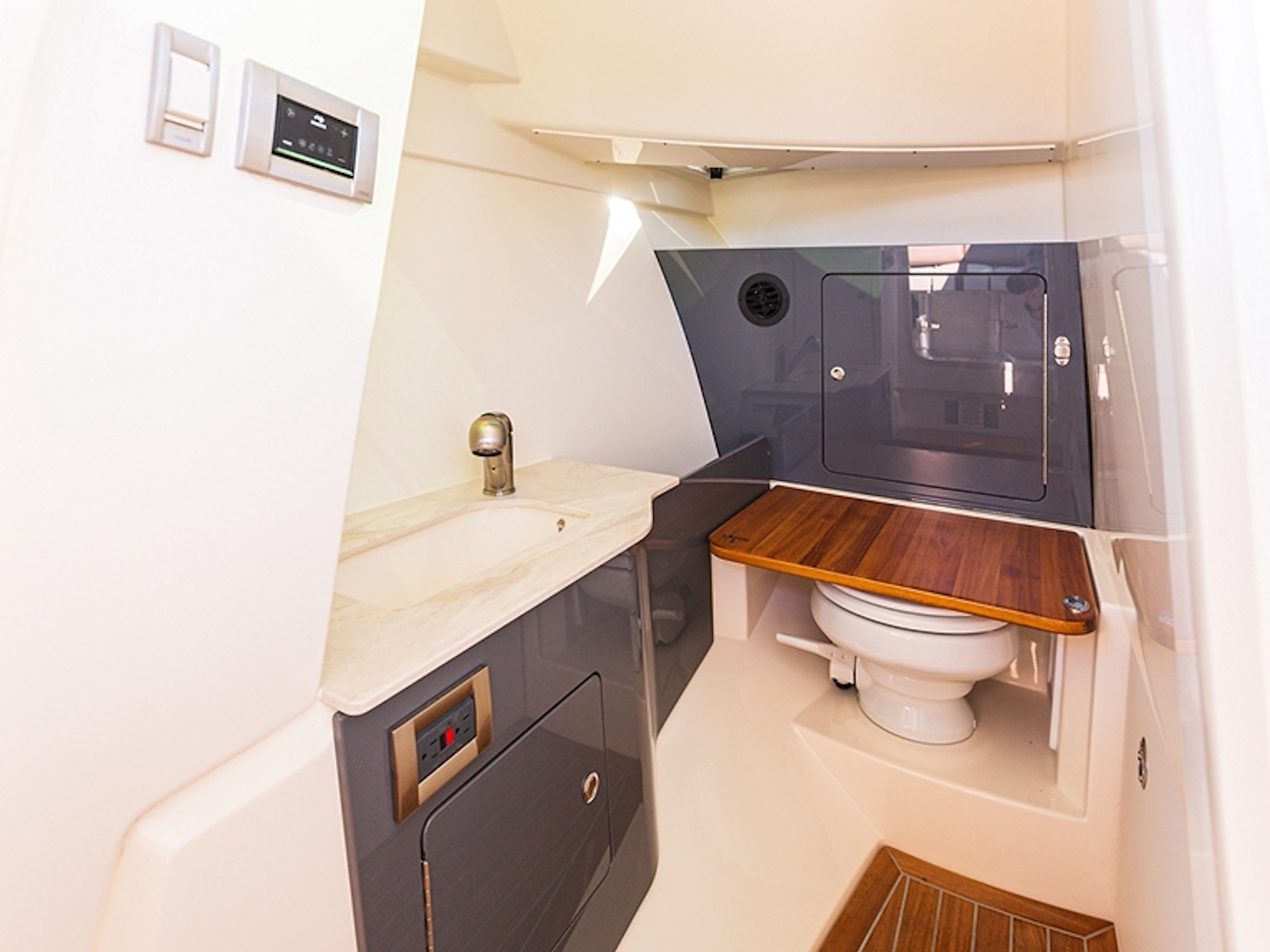

Port console Interior/Head:

• Lighting – interior overhead light
• Fold-down teak seating above porcelain head
• Opening air vents in deck mount overhead portlight for natural air flow
• Porcelain vacuflush® toilet, holding tank, overboard discharge, and dockside pump-out
• Pull out sink/shower sprayer
• Skylight – fixed tinted
• Solid surface countertop
• Trash receptacle
• Wood flooring
• Acrylic storage cabinet
• Toilet paper holder

Starboard Console (Interior/Setee):

• Access panel to electronics
• Bench / Convertible berth
• Lighting - blue courtesy accent
• Lighting – interior overhead light
• Opening air vents in deck mount overhead portlight for natural air flow
• Skylight - fixed tinted
• Teak entry step
• USB charger
• Wood flooring
• Wood grain storage cabinets

Transom Box:

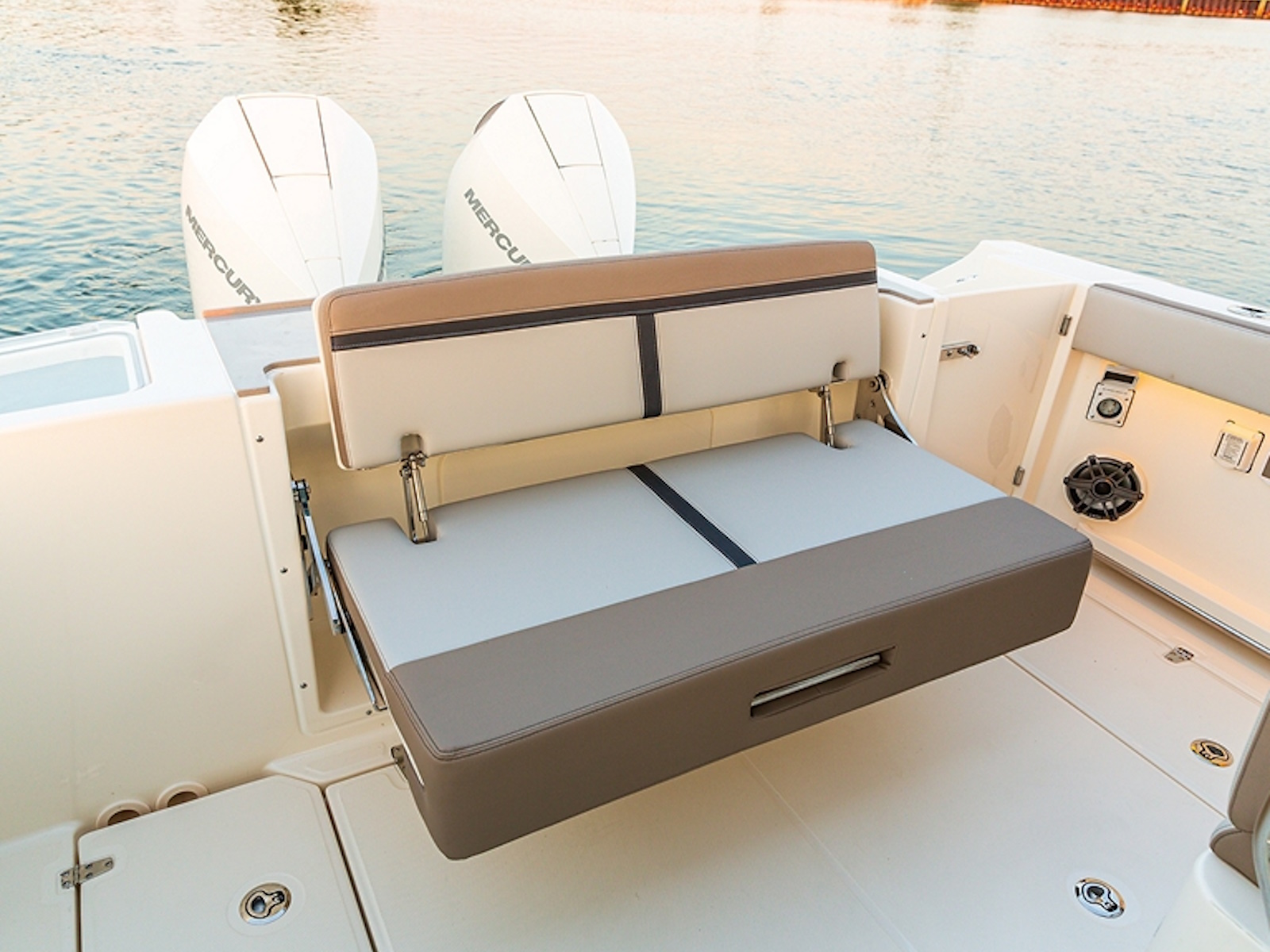

• Foldout stern seat with elevated backrest
• Countertop - Solid surface
• Compact freshwater sink (cold only without water heater)

Electronics:

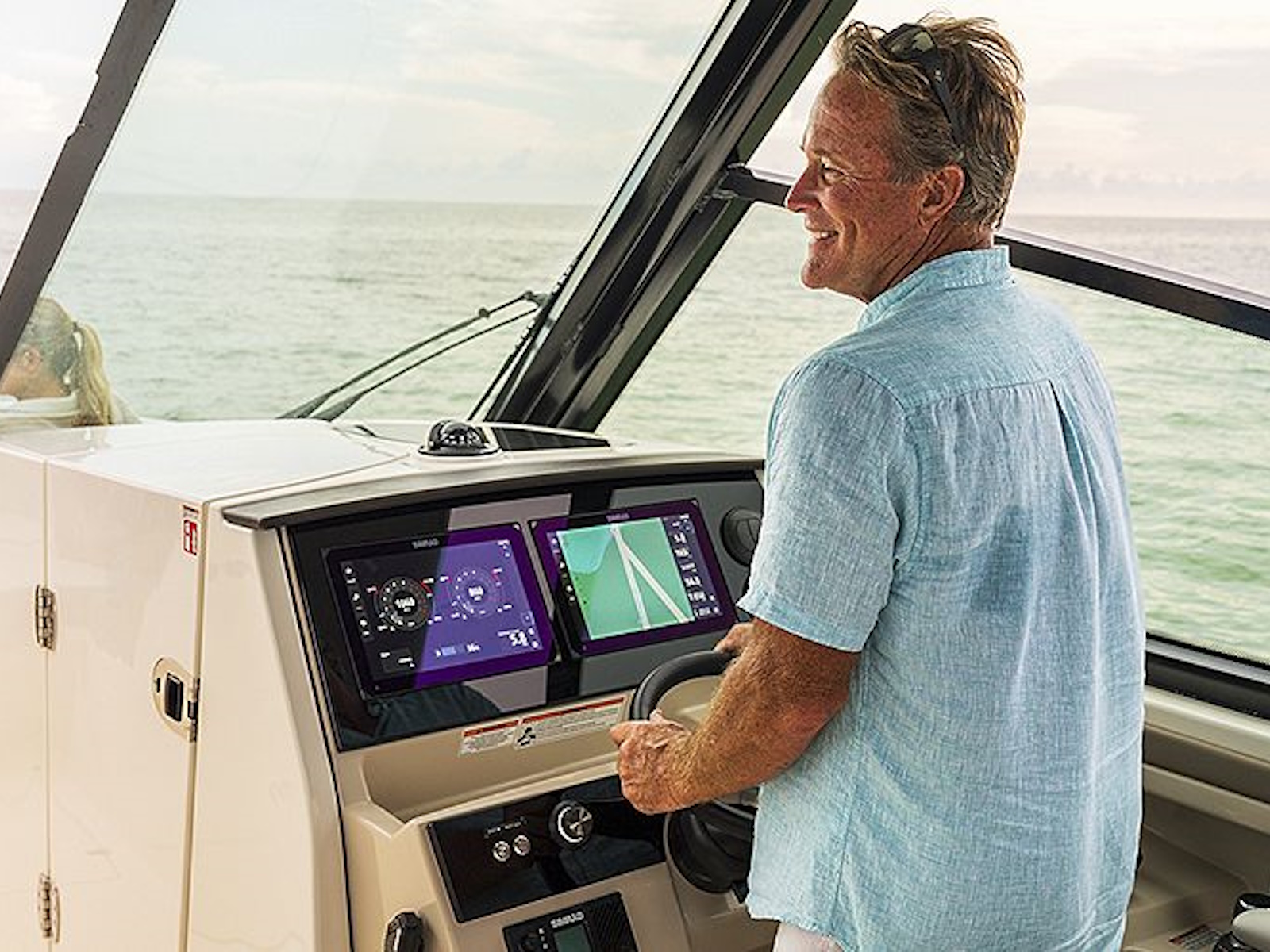

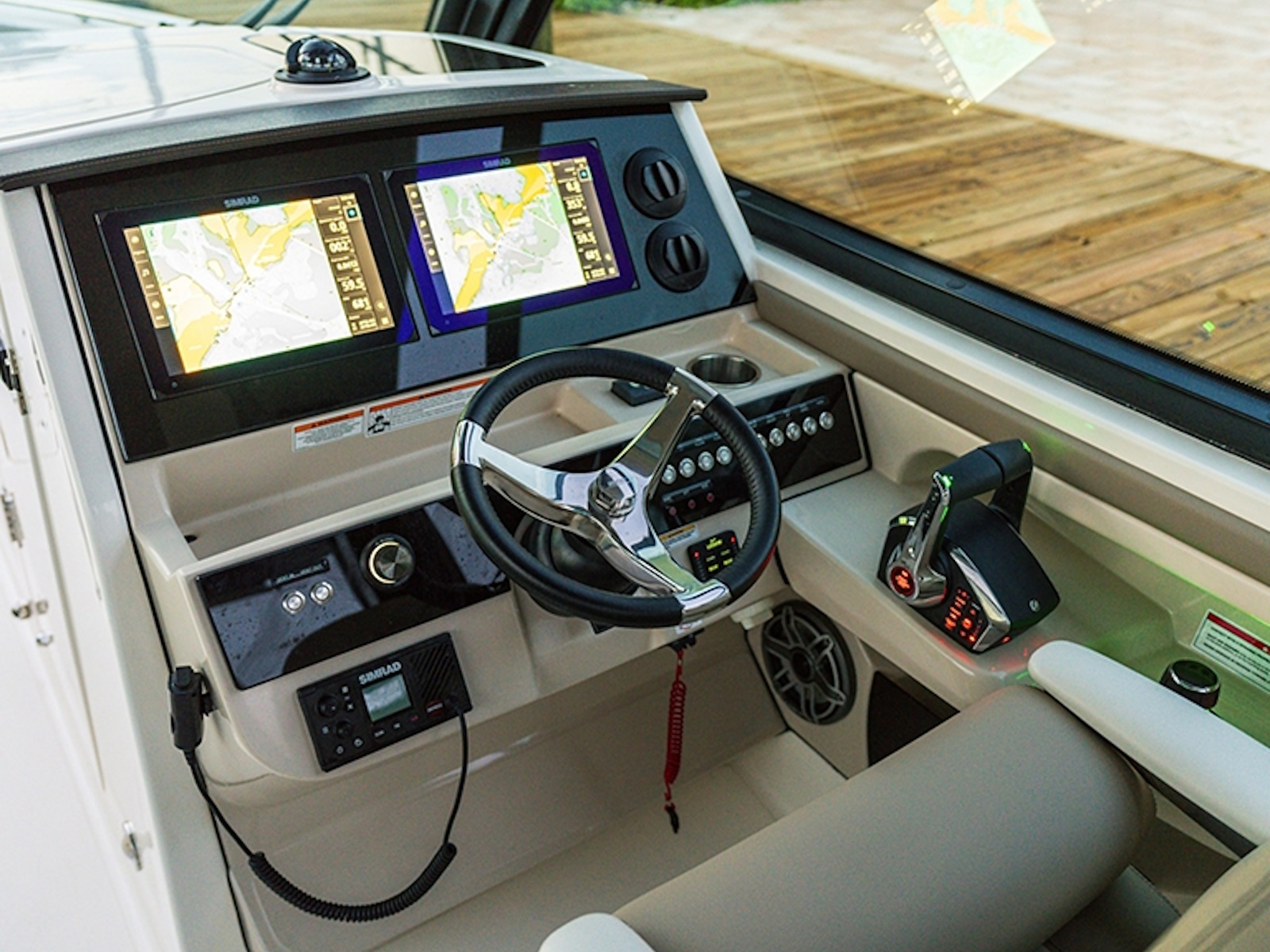

• 12” SIMRAD NSX ELECTRONICS/NAVIGATION PACKAGE - Simrad NSX 12” MFD (GPS, Chart plotter, Fishfinder) - Active Imaging 3 in 1 Transom Mount Transducer (CHIRP, SideScan, DownScan) - C-Map® DiscoverTM X Chart Card: North America/Canada
• STEREO (JL Audio integration into Simrad Navigation Package) - JL Audio MM105-HR stereo with Dash mounted remote volume/mute knob - AM/FM/HD Radio, USB audio, and Sirius XMTM ready - Iphone/Android compatible via integrated Bluetooth 5.0 • JL waterproof speakers (8), Subwoofers(2) and 1200W Amplifier • HTML server integration

Features May Include:

•  Award-winning port-side convertible seat/ lounge with multiple configurations
• Integrated Simrad® technology for full control of all boat systems at your fingertips
• Half or full walkthrough windshield options for enhanced weather protection
• Large, easy-access head under passenger console with updated comfort features
• Wrap-around bow lounges with durable and luxurious restyled upholstery
• Starboard two-person couch under hardtop with generous storage beneath

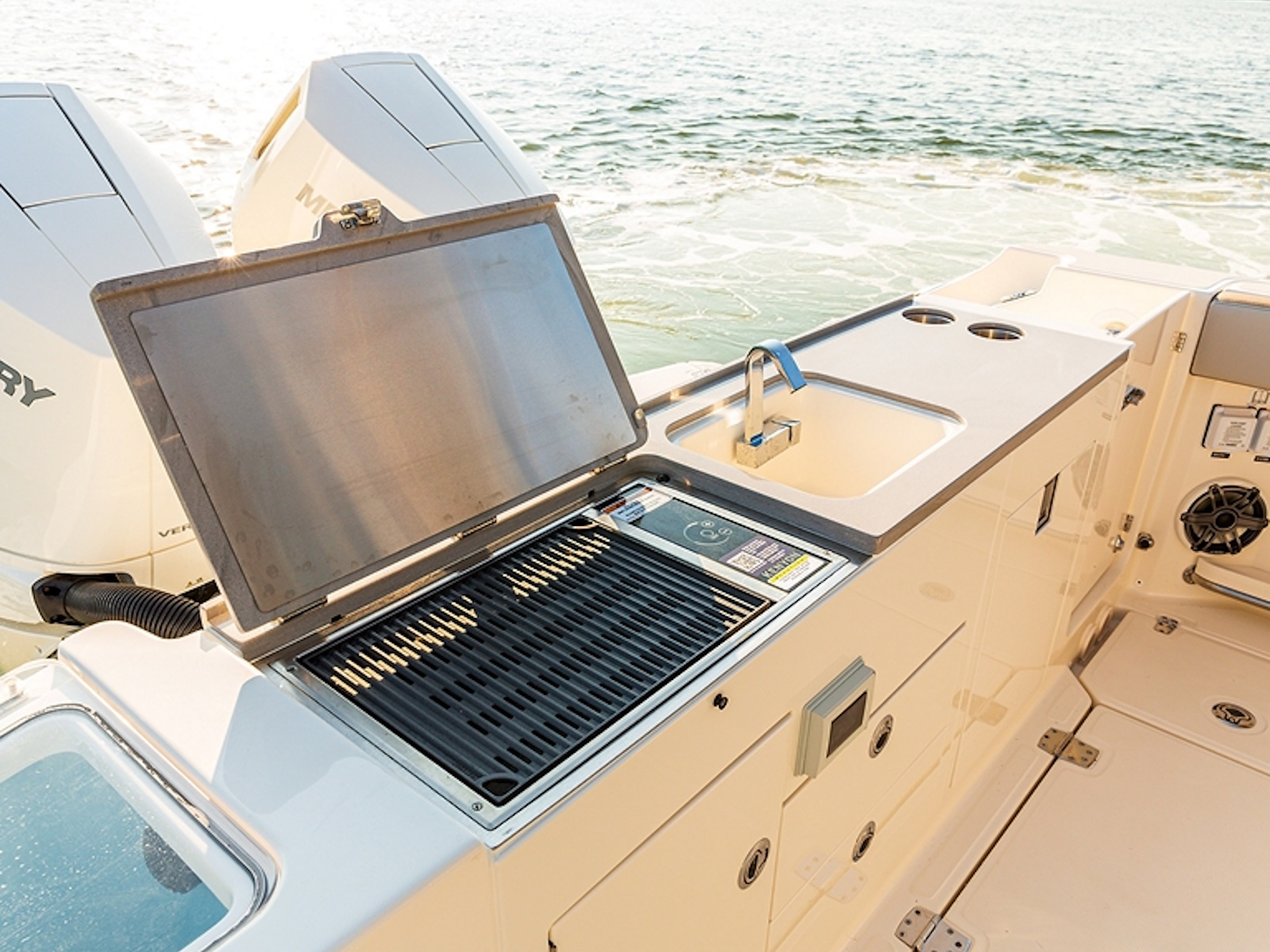

• Flip-down transom seat with bait-prep station or optional summer kitchen
